Mordaza
MORDAZA profile for sliding doors, allows entrances with an avant-garde and elegant design.
More information

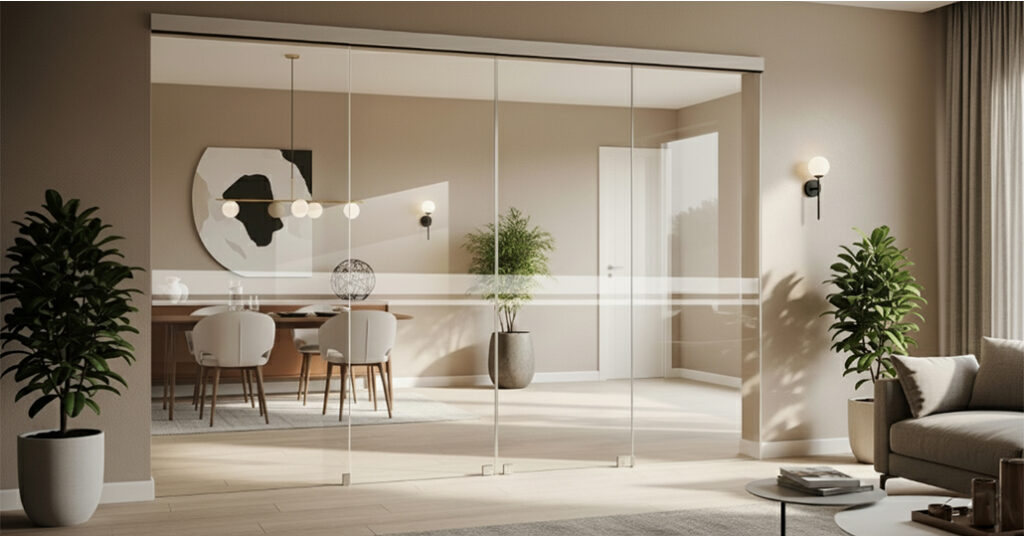

Mordaza profile for automatic glass doors
MORDAZA profile, ideal for entrances with an elegant, avant-garde design, allowing maximum visibility.Model with less frame and more full glass.
We recommend the MORDAZA LONG CLAMP, which is aesthetically similar to the PINZA model for 4 + 4mm and 5 + 5mm glass and leaves up to 1.2m wide. The long clamp profile is designed for tempered or laminated glass with a thickness of 10 and 11 mm and a weight lower than 28 kg /m2. The maximum permitted leaf height is 3000 mm.
Due to the anti-slip material located inside the clamp, this model provides a secure hold of up to 150kg of blade. It has the advantage that it is not necessary to drill or work the glass, because the clamp is able to holds pressure, with the consequent ease when installing or changing glass.
Technical characteristics
- Simple installation.
- Frame width: No frame.
- Airtight integrity: *
- Safety: *
- Silver color finish.
- No need to drill or work the glass.
Downloads
Product datasheet
Other downloads
- Memory of architects of the MORDAZA profiling
- Profile plan MORDAZA Ertain 2+2 (pdf)
- Profile plan MORDAZA Ertain 2+2 (dwg)
- Profile plan MORDAZA Ertain 1+1 (pdf)
- Profile plan MORDAZA Ertain 1+1 (dwg)
- Profile plan MORDAZA Global 2+2 (pdf)
- Profile plan MORDAZA Global 2+2 (dwg)
- Spare parts list MORDAZA
